This YVF2 catalogue separates constant torque below the 50 Hz base point from constant power above it. It also lists different currents and frames for the same output at different pole counts. A useful quotation therefore needs the actual speed-and-load cycle, not only a kW rating and a request for variable speed.
The brochure labels its low-frequency region “5 (3)–50 Hz constant torque.” It does not explain which ordered versions or control conditions qualify for 3 Hz instead of 5 Hz. State the lowest continuous operating frequency and load torque, and obtain confirmation for that exact winding and inverter. Do not read the parenthesized 3 Hz as an unconditional family-wide rating.
The graph labels 50–100 Hz as constant power and shows torque decreasing above base frequency. Under the ideal constant-power relationship, doubling speed halves available torque; this explains the graph, rather than adding a measured overload rating. A machine needing full base torque at the top speed requires a different selection check.
The motor uses IC416 cooling with a separate axial fan. Include that fan’s voltage, power and control arrangement in the inquiry; the displayed table does not specify its electrical rating. The machine must retain the required cooling during low-speed operation instead of relying on the main shaft to drive airflow.
Exact entries from the performance and dimensional tables. The dimensions refer to the illustrated footed, flanged arrangement; the drawing must match the ordered B3, B5 or B35 form.
| Catalogue configuration | Rated torque / current | Shaft D / key F | Foot spacing A × B | Overall L |
|---|---|---|---|---|
| YVF2, 180L, 4 poles, 22 kW | 140.0 Nm / 42.4 A | 48 / 14 mm | 279 × 279 mm | 815 mm |
| YVF2, 225M, 8 poles, 22 kW | 280.1 Nm / 47.4 A | 60 / 18 mm | 356 × 311 mm | 915 mm |
The catalogue gives 30 kVA beside the 22 kW row, while the two selected pole counts draw 42.4 A and 47.4 A. Match inverter output current, overload requirement and the actual duty to the selected motor instead of assuming that one row-level kVA entry covers every operating condition. Record the main motor’s 380 V, 50 Hz base rating separately from its variable-frequency command range.
The brochure describes mounting correspondence with the equivalent YE3 frame but explicitly excludes overall length. The 22 kW examples above also show why power alone cannot identify the replacement shaft, key or foot spacing. Obtain the ordered drawing and check the rear fan clearance, coupling and base before reusing an existing installation.
The brochure specifies S1 duty, IP54, ambient temperature from −15°C to +40°C and altitude no more than 1,000 m. An enclosure, higher site altitude or a hotter process changes the cooling conditions. Put those actual conditions in the inquiry so the selected motor and fan arrangement can be assessed; do not transfer the YE3 comparison’s IP55 label to this YVF2 motor.
CATALOGUE OVERVIEW

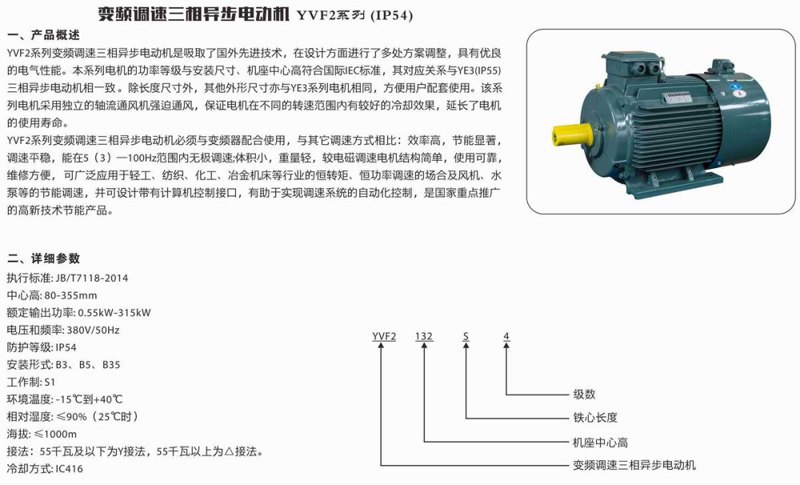

Shiyang’s YVF2 variable-frequency family covers 0.55–315 kW in 80–355 mm frames. It uses an independent axial cooling fan and specifies IC416 cooling with IP54 protection. Its mounting dimensions are described as matching the corresponding YE3 frame except for overall length. The brochure requires an inverter; confirm the low-speed limit and cooling-fan supply for continuous operation.
The brochure writes the lower speed-control frequency as 5 (3) Hz. The ordered variant’s continuous-torque limit needs confirmation.
Model / series reference: YVF2
Specifications describe a series range; confirm which ratings apply together to the quoted model.
Confirm mounting and shaft dimensions against the drawing for the quoted configuration.
