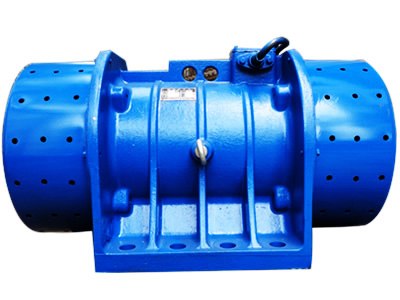

XVM-A adjustable vibration motor

Manufacturer catalogue image · Series illustration

Application-specific motors

XVM-A adjustable vibration motor

Voltage
380 V
Duty
Continuous
Phase
Three-phase
Frequency
50 Hz standard listing

Catalogue series · Exact configuration and availability confirmed by the manufacturer.

CATALOGUE OVERVIEW

About this motor series

Xinlanbeike’s XVM-A is a vibration motor with adjustable eccentric weights. The published standard electrical data is 380 V, 50 Hz, three-phase, with class F insulation, IP55 protection and continuous duty. The source also describes vibration-resistant terminals and bearings selected for the operating loads.

Select a size using excitation force and vibration frequency together with the machine’s supported mass and mounting geometry. Changing the eccentric setting changes the excitation; it is not equivalent to adjusting shaft-output power. Request the model-specific force, speed, power and installation table before sizing. Special voltage and frequency variants are discussed in the catalogue but require confirmation for the supplied motor.

Model / series reference: XVM-A

Published specifications

Specifications describe a series range; confirm which ratings apply together to the quoted model.

Voltage
380 V
Duty
Continuous
Phase
Three-phase
Frequency
50 Hz standard listing
Insulation
F
Protection
IP55
Ambient Temperature
−20°C to +40°C
Excitation Adjustment
From zero to maximum via eccentric weights
Power
Confirm configuration
Speed
Model dependent

Confirm mounting and shaft dimensions against the drawing for the quoted configuration.

Catalogue reference

Manufacturer
Xinlanbeike XVM
Product reference
XVM-A adjustable vibration motor
Source reviewed
2026-09-21

Ask for the current datasheet and dimensioned drawing with your inquiry.

Selection guidance for Application-specific motors
  • Application and load cycle
  • Mechanical envelope
  • Supply and control
  • Environment and cooling
  • Drawings and acceptance criteria
