MOTOR MANUFACTURER · Zhejiang, CHINA

EMP Motor

Ningbo EMP publishes brushed DC motors, brushless DC motors, controllers and RV right-angle geared drives. A buyer should define the motor duty and supply first, then confirm controller and gearbox compatibility as one package. The maker's broad custom-design range is not a rating for every catalogue motor.

LocationZhejiang, China
Published catalogue4 product series
Motor families3 represented

NINGBO EMP · COMPLETE DC DRIVE DECISIONS

Ningbo EMP: match brushed, brushless, controller and geared DC drives

Explore the published range ↓

01 / DUTY AND CONTROL ARCHITECTURE

Brushed and brushless machines require different drive decisions

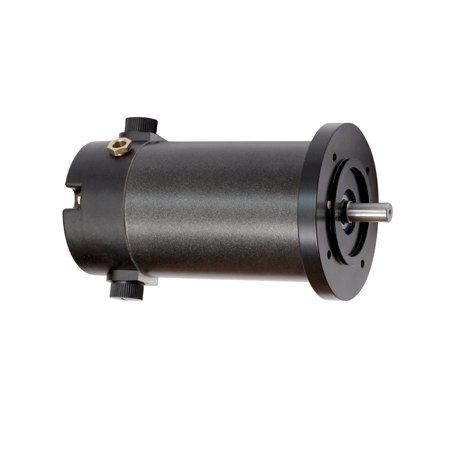

Brushed DC when a simple low-voltage drive fits

The official brushed catalogue includes M3-012 and other distinct 12, 24, 48 and 60 V entries. The M3-012 detail page identifies a 12 V DC, S1 continuous-duty motor at 900 rpm and offers an IEC or custom flange and shaft. That page does not print a complete torque, current and temperature-rise rating, so the category card's wattage is not enough for thermal selection. A brush/commutator maintenance plan matters if the machine runs continuously or is difficult to access.

Confirm before ordering Provide continuous torque and speed, peak start/load, daily hours, voltage tolerance, enclosure and maintenance interval. Request the exact M3-012 winding data, rated current, torque curve, brush life assumptions and interface drawing.

View Brushed DC motor range →

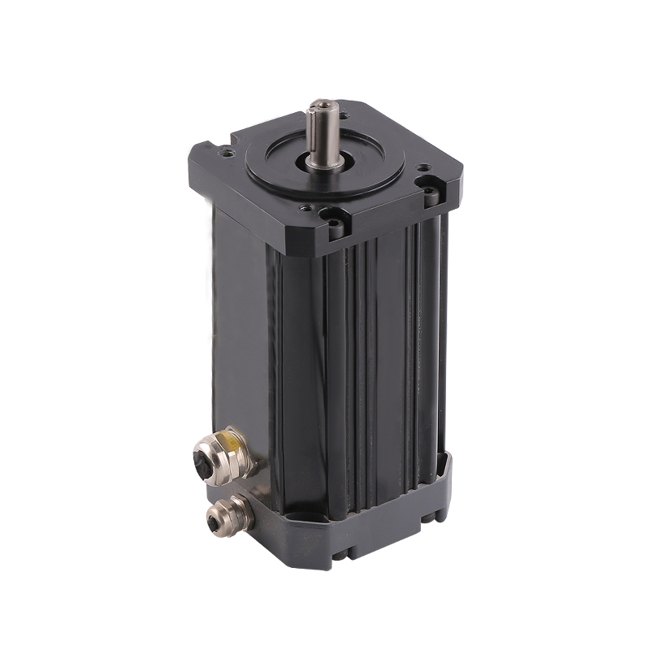

Brushless DC for a defined motor-controller pair

The M077A-4116 product page states 300 V DC, 250 W continuous duty and 3000 rpm rated speed for that coded motor. Beneath it, a separate M077A/B family table spans many voltages and speeds and mentions three phases, 120-degree Hall angle and up to IP65. Those family endpoints are not all specifications of M077A-4116. The controller, feedback connector and thermal protection must be selected for the offered winding and installation.

Confirm before ordering Send the DC bus, continuous and peak torque-speed profile, start/stop cycle, feedback needs, enclosure and mounting dimensions. Ask for the exact motor curve, Hall/phase pinout, controller pairing, current limit and loss/temperature test at duty.

View Brushless DC motor range →

02 / ELECTRICAL COMPATIBILITY

Do not treat every controller in the catalogue as interchangeable

EMP publishes both brushless and brushed controllers. Match supply, topology and current limits before committing to a motor or gearbox package.

DBLS-07-H is a brushless path

The maker lists DBLS-07-H as a brushless driver with 85–265 V AC at 50/60 Hz or 120–375 V DC input, 12 A continuous output current, and a stated suitability for brushless motors below 1500 W. That broad statement is not proof it suits every M077 winding. Confirm DC-bus voltage, phase current, Hall feedback, controller settings, braking and EMC in the current manual.

DC24RT100BL is a brushed path

The official DC24RT100BL page describes a 12–48 V DC permanent-magnet brushed controller with 50 A continuous and 100 A peak for 20 seconds. It is not a substitute for the three-phase brushless driver merely because both vary speed. Request wiring and overload behaviour for the exact motor/controller pair.

Continuous rating beats marketing range

The site advertises a wide custom-design envelope, but that does not turn a 250 W continuous M077A-4116 into a higher-power model or authorize peak operation indefinitely. State duty cycle, cooling and allowable winding temperature, then request paired tests and protection settings.

03 / IF THE LOAD NEEDS REDUCTION

Specify output torque and shaft geometry for the RV right-angle option

Which motor and reducer are actually included?

EMP's RV right-angle worm-gear page lists ratios 5:1 to 100:1, IEC-type flange and shaft dimensions, approximate 60% operating efficiency and an optional electromagnetic brake. It does not give a complete motor/reducer combination code. Ask whether the quotation includes motor, reducer, brake and controller, and identify the output shaft arrangement.

What load is applied at the gearbox output?

Send required output speed, continuous and peak torque, radial/axial load, mounting position, duty hours and reversal frequency. Request a selected ratio and thermal/service-factor check. Do not multiply the motor's maximum torque by a ratio without allowing for gearbox efficiency, losses and rating limits.

How will the package be accepted?

Agree on a signed motor and gearbox drawing, controller connection diagram, output torque-speed result, temperature-rise and noise test conditions, brake holding requirement if used, and traceable part numbers in the final bill of materials.

04 / WHAT HAS BEEN CHECKED

Specific product pages support specific claims; historical listings support identity

A long-running name, without an inferred current certification

The current official catalogue and a company-authored driver manual identify 宁波艾莫普直流电机动力有限公司 and its English EMP name. A historical industry marketplace guide independently listed Ningbo EMP DC Motor Dynamics Co., Ltd. with brushed and brushless motors. That older listing corroborates public trading identity at its publication date, not today's factory capacity or approval of an offered drive.

The exact configuration is still an RFQ decision

The M077A-4116 page gives a coded continuous-duty point; the M077A/B table gives a family envelope. M3-012 omits a full torque/current sheet. The controller and RV pages describe other assemblies. This profile keeps their boundaries separate and does not combine maximum figures into a non-existent single drive.

Published motor range

4 series

Company information

Company name
Ningbo EMP DC Motor Dynamics Co., Ltd.
Chinese registered name
宁波艾莫普直流电机动力有限公司
Region
Zhejiang, China
Record updated
2026-10-07
