MOTOR MANUFACTURER · Zhejiang, CHINA

Chuangxin Motor

Chuangxin's catalogue serves three different engineering jobs: repeated reversing on a steel roller table, continuous fan or pump duty, and permanent-magnet drives with distinct starting and inverter arrangements. The right enquiry starts with the machine's operating pattern; a family description does not establish the rating or approval of the unit you will buy.

LocationZhejiang, China
Published catalogue3 product series
Motor families3 represented

SHAOXING · ROLLER TABLES, FANS AND HIGH-EFFICIENCY DRIVES

Chuangxin Motor: separate roller duty, fan drives and PM control

Explore the published range ↓

01 / MATCH THE LOAD

Three catalogue paths with different failure risks

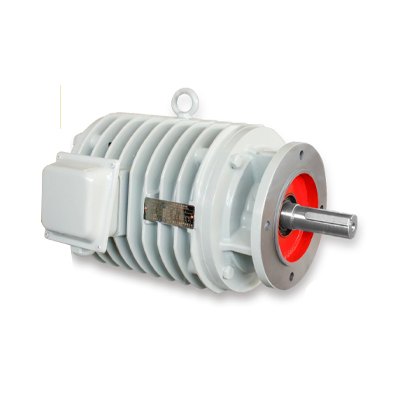

Steel roller table: YGa and YGb are not the same duty

The manufacturer's YG page assigns YGa to a working roller and YGb to a conveying roller. It explicitly describes frequent starts, braking, reversal and plugging in hot, dusty surroundings. It lists H-class insulation for YGa, while YGb is F class in 112–200 mm frames and H class at 225 mm. Those are family distinctions, not a complete thermal rating for a selected installation.

Confirm before ordering State roller diameter and inertia, reflected torque, starts and reversals per hour, braking method, ambient and dust exposure. Request the exact YGa or YGb frame, allowable cycle, torque-speed/thermal curve and shaft/mounting drawing.

View Roller-table motor →

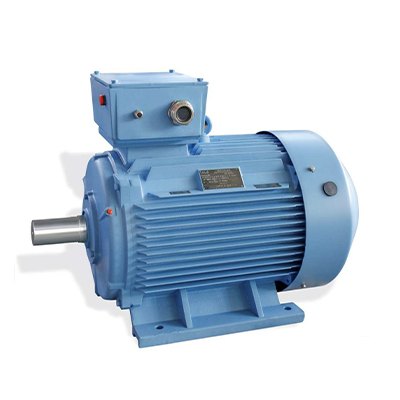

Fan or pump: test YEXA at the actual operating point

YEXA is described as a totally enclosed, self-fan-cooled, single-speed induction line for continuous duty. The maker states GB 18613-2020 grade 3 and IEC 60034-30 IE3 for the series, with fans, pumps and machine tools among the uses. This does not give a measured efficiency or vibration result for every code, nor does it qualify a smoke-extraction duty.

Confirm before ordering Provide supply, shaft power and speed at the design point, fan/pump curve, mounting envelope, ambient and required efficiency rule. Obtain the selected code's rated data, efficiency test, cooling and bearing arrangement, drawing and any application-specific fire-duty evidence.

View YEXA three-phase induction motor →

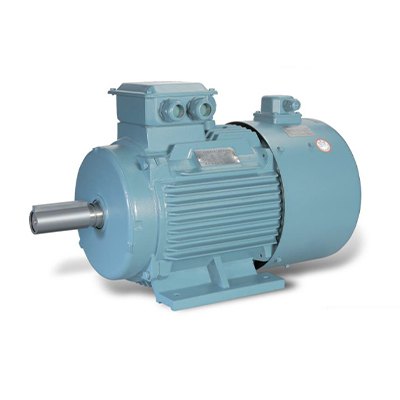

Permanent magnet: establish how it starts and is controlled

The official permanent-magnet range distinguishes TYE4 from TYPE4, which is described with inverter operation over 5–50 Hz constant torque and 50–100 Hz constant power. The maker also discusses a squirrel-cage starting feature and optional independent cooling. These statements belong to their documented variants; they must not be combined into one assumed motor configuration.

Confirm before ordering Give the torque-speed curve, required speed range, starting method, drive and cable details, low-speed thermal duty and overspeed condition. Ask which TYE4/TYPE4 revision and cooling option the quote covers, with the inverter match and tested operating envelope.

View Permanent-magnet motor →

02 / SEPARATE THE RECORDS

A real manufacturing footprint does not approve every variant

Entity and site can be traced

The current corporate footer identifies Zhejiang Chuangxin Motor Co., Ltd. and its earlier Shangyu name, while older company text still uses Zhejiang Chuangxin Motor Co., Ltd. in its former legal form. A government environmental project document names the former legal entity at the Lianghu site and describes motor manufacturing. The finance ministry's historic high-efficiency-motor allocation also names that earlier entity. These records support continuity of the manufacturer, but historical subsidies are not a present product certificate.

Planned expansion is not delivered capacity

The published environmental document describes an energy-grade-one motor smart-manufacturing project under the former company name. Its project scope and stated production goals should not be read as proof that the new line was completed or that a buyer's particular motor has passed a current test. Ask for the present plant and inspection records tied to the proposed order.

Safety and temperature claims need exact scope

Corporate pages discuss high-temperature smoke extraction and explosion-protected variants alongside ordinary motors. The inspected catalogue text does not establish that every YEXA, roller-table or PM configuration carries a fire-duty or Ex approval. For a tunnel, mine or classified area, request the exact marked model, certificate, validity and operating restrictions before using that motor in the design.

03 / GET A COMPARABLE QUOTE

Ask for one configured motor, not three mixed catalogue promises

What does Chuangxin need from the buyer?

Name the driven machine and whether the job is reversing roller duty, fixed-speed fan/pump service or inverter-fed PM service. Supply the load and inertia, duty cycle, supply and control, ambient, mounting and shaft interface, destination-market rule, quantity and acceptance test. Put any fire-extraction or hazardous-area requirement first.

What should come back with the quotation?

Request the exact series, model suffix and revision; separate mechanical and electrical drawings; rated and tested torque, speed, current, temperature rise, efficiency and cooling data at stated conditions; applicable certificate or fire test for the selected code; and the routine-test, traceability and delivery plan. Compare those documents with the incumbent machine before a sample order.

Published motor range

3 series

Company information

Company name
Zhejiang Chuangxin Motor Co., Ltd.
Chinese registered name
浙江创新电机股份有限公司
Region
Zhejiang, China
Record updated
2026-10-07
