MOTOR MANUFACTURER · Zhejiang, CHINA

Dafeng Motor

Zhejiang Hongda Group Dafeng Electronics presents a broad AC-motor catalogue, but two very different buying tasks sit inside it: a YBX3-labelled flameproof motor for a formally classified hazardous location, and АИРЕ/АИРЕ2 single-phase designs offered for GOST-market machinery. The correct decision starts with the installation's area classification or destination standard, followed by the exact motor code and drawing. A family page, promotional use-case list or company-level badge does not establish the explosion-protection marking or conformity of a particular motor.

LocationZhejiang, China
Published catalogue4 product series
Motor families2 represented

DAFENG · APPLICATION-SPECIFIC AC MOTORS

Dafeng Motor: specify hazardous-area and GOST drives separately

Explore the published range ↓

01 / TWO DIFFERENT SPECIFICATION PATHS

Hazardous location and export-standard motors need separate RFQs

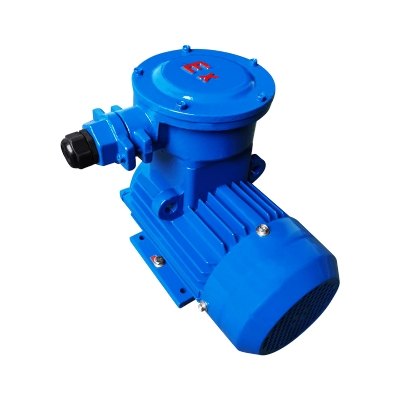

YBX3: start with the area classification

Dafeng's official page offers a YBX3-labelled explosion-proof three-phase motor and a two-page PDF with a performance table and outline drawings. The PDF's rows, however, begin with YB3 model codes even though its heading says YBX3. Therefore the table is not sufficient evidence of a specific YBX3 unit's certified power, temperature class or installation dimensions. Select an offered model only after the supplier supplies the nameplate, exact Ex marking and matching certificate schedule for the classified gas or dust environment.

Confirm before ordering Give zone, gas or dust group, temperature class, ambient range, voltage/frequency, kW, speed, duty, mounting, cable entry and drive/VFD use. Request the certificate number, issue and expiry status, approved model suffixes, installation instructions and current model drawing.

View YBX3 explosion-proof motor →

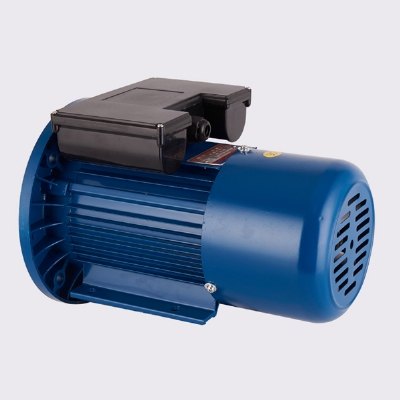

АИРЕ: a single-phase GOST-market motor

Dafeng's separate АИРЕ page describes a running-capacitor single-phase motor offered in 50–90 mm frames and 0.09–2.2 kW, and says the family targets GOST R51689 dimensional and power conventions. That is a manufacturer statement about a range, not evidence that every listed power fits every frame or that a specific shipment carries all destination approvals. Compare the actual 50 Hz supply, capacitor arrangement, starting load and flange/foot dimensions.

Confirm before ordering Specify the destination, local supply, frame and mounting code, shaft, load starting torque, duty and enclosure. Ask for the exact АИРЕ variant's table row, outline, capacitor and wiring details, and standards evidence relevant to the destination.

View AIRE / AIRE2 GOST single-phase induction motor →

АИРЕ2: separate two-capacitor starting design

The official АИРЕ2 page presents a two-capacitor single-phase design for the Russian market, with a stated family scope of 0.55–11 kW and frames 71–132 mm. The start capacitor and run capacitor have different functions; this should not be treated as the same electrical replacement as a running-capacitor АИРЕ simply because both are single-phase. The supplier should confirm the switching scheme and permissible starting frequency for the exact build.

Confirm before ordering Send load torque at start, starts per hour, voltage, frequency, duty, shaft and housing dimensions. Ask for the model-specific start/run capacitor values, wiring diagram, thermal protection and approved connection drawing.

02 / READ THE PRODUCT DOCUMENT, NOT THE HEADLINE

Three points that need a model-specific answer

YBX3 heading versus YB3 table

The manufacturer's downloadable two-page PDF is branded 'YBX3 series' and contains electrical rows headed YB3-80M1-2 through other YB3 codes. Before any selection, ask whether that document belongs to the proposed YBX3 build or is an older YB3 table. Do not transfer the printed kW, efficiency or dimensions across model names without written reconciliation.

Explosion-proof applies to an approved build and area

The public product prose names many industries, including mining and food processing, without assigning each offered motor an exact Ex code. Gas zones, dust zones and mines are not interchangeable. Confirm the area classification and the delivered motor's marking and certificate; check whether the inverter, terminal box and ambient conditions are within the approval.

GOST positioning is not a substitute for a drawing

Dafeng says its АИРЕ/АИРЕ2 dimensions relate to GOST R51689. A buyer still needs the specific frame, pilot, bolt circle, shaft and electrical configuration. The two single-phase families have different capacitor/start descriptions and power scopes, so no series-wide interchange is assumed.

03 / WHAT TO SEND AND RECEIVE

Close the document gap before approving a sample

The manufacturer's own profile identifies Zhejiang Hongda Group Dafeng Electronics Co., Ltd. in Wenling and lists AC asynchronous, small explosion-proof and other motor families. Its workforce, brand-customer and certificate claims are company-supplied. For a safety-critical application, rely on the delivered model's current technical and approval documents rather than company-wide marketing copy.

Hazardous-area motor replacement

Attach the existing nameplate and Ex marking, classified-area dossier, shaft and flange drawing, power supply, duty and starting method. Request a quote naming the exact YBX3 motor, certificate schedule, test report, installation manual, approved accessories and lead time. Resolve the YBX3/YB3 PDF discrepancy in writing.

GOST single-phase machine build

Identify АИРЕ or АИРЕ2 by actual start torque and duty, then send target supply and destination standard, frame, shaft, base/flange and environmental conditions. Obtain a signed dimensional/electrical sheet and capacitor/wiring arrangement for the offered SKU.

Acceptance and traceability

Compare the quotation code, drawing revision, nameplate, packaging and delivered inspection records. If the stated certification or dimensional standard is essential to the project, request the relevant current evidence before production acceptance rather than inferring it from a product category.

Published motor range

4 series

Company information

Company name
Zhejiang Hongda Group Dafeng Electronics Co., Ltd.
Chinese registered name
浙江鸿达集团温岭市大丰电机股份有限公司
Region
Zhejiang, China
