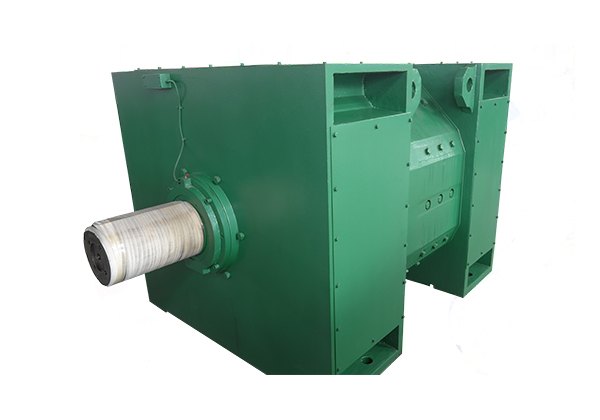

Jiangsu Haze publishes separate Z2, Z4, ZSN4 and medium-frame Z DC motor families. The key difference is not just nameplate power: Z2's self-ventilated low-speed duty, Z4's assisted cooling and ZSN4's kiln ventilation need different project inputs. Select the drive and cooling arrangement before comparing quotes.

LocationJiangsu, China
Published catalogue4 product series
Motor families1 represented

JIANGSU HAZE · DC DRIVE APPLICATIONS

Jiangsu Haze DC motors: compare Z2, Z4 and kiln-duty ZSN4

Explore the published range ↓

01 / DUTY AND COOLING BEFORE POWER

Three catalogue families answer different drive problems

Z2: small industrial drives with self-ventilation limits

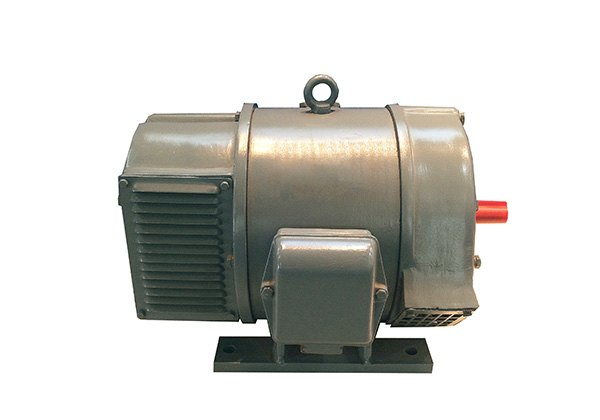

The Z2 page describes a small general-industrial DC motor family used in printing, textile, plastics and other machinery, with shunt or separate excitation. Its standard construction is self-ventilated: as armature voltage and speed fall, available continuous torque must be checked rather than assumed constant. The same page offers externally blown variants for some larger frames, but that is an option, not every Z2 unit's standard equipment. It also discusses generator variants separately from motors.

Confirm before ordering Give the required continuous torque at the lowest speed, speed range, duty cycle, ambient conditions, drive supply, field supply and coupling. Ask whether the selected Z2 code includes a blower and request its low-speed thermal curve and exact mounting drawing.

View Z2 DC motor →

Z4: rectifier-fed variable-speed duty with chosen airflow

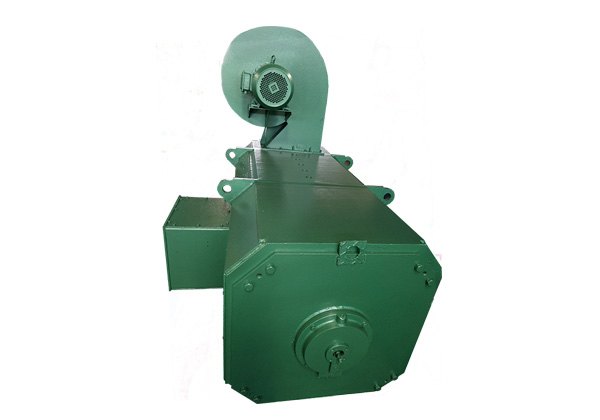

The Z4 page describes rectifier supply and fast-changing load current, with IC06 assisted ventilation as a basic arrangement and IC17/IC37 ducted variants. Fan motor supply and main armature supply are different circuits; the page notes the ventilation fan motors as three-phase, two-pole 380 V. The fan's consumption or a catalogue overload phrase is not a selected shaft-power rating. The foot-hole axial dimension B is expressly excepted from the page's general IEC72 dimensional statement.

Confirm before ordering Specify base and maximum speed, continuous/peak torque, rectifier ripple, armature and field voltages, cooling-air source, inlet/outlet arrangement, allowed radial load and shaft direction. Ask for the chosen motor/fan drawings, cooling data and overload-duration curve.

View Z4 DC motor →

ZSN4: cement rotary-kiln main-drive integration

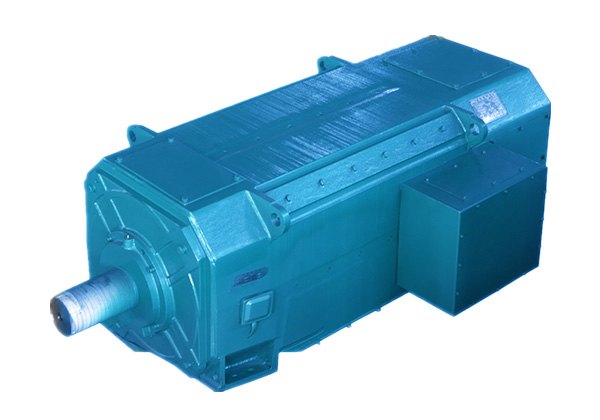

The dedicated ZSN4 page describes a kiln main-drive series derived from Z4 and gives 40–355 kW as a family envelope, S1 duty and separately supplied armature and field circuits. It highlights ducted cooling in dusty cement service; a frame table lists airflow and static pressure for ZSN4-225 through -355. The headline says IP21S while a later table relates IP23S or IP44 to duct arrangement, so an actual offered enclosure must be identified rather than inferred.

Confirm before ordering Send kiln drive speed/torque at start and crawl, gearbox/coupling data, dust temperature, duct route and available airflow/static pressure. Require the frame-specific cooling schedule, field circuit, enclosure and protection drawings, and exact continuous/starting-duty test conditions.

View ZSN4 DC motor →

02 / ELECTRICAL AND MECHANICAL FIT

A DC motor offer must include field, converter and cooling decisions

How will the armature and field be supplied?

The ZSN4 page specifies separate armature and excitation supplies and notes field-circuit protection when excitation is disconnected. The Z4 page distinguishes three-phase bridge supply from a lower-voltage single-phase bridge arrangement that needs smoothing inductance. Give the actual converter topology and supply quality; request connection and protection diagrams for the exact motor code.

Can the motor reject heat at every working speed?

A slow Z2 and a duct-cooled kiln ZSN4 cannot be evaluated with the same air assumption. For an IC17 or IC37 package, include duct pressure loss, air cleanliness, fan redundancy and interlocks. Request temperature-rise evidence for continuous and start/overload operation, including any field and brush limits.

Will the replacement physically fit?

Send the existing machine's base-hole spacing, shaft and key, coupling, terminal-box side, rotation convention and any tachometer, heater or thermal sensor. The Z4 and ZSN4 ordering notes make single/double shaft, alternative box position and accessories contract items, not automatic inclusions.

03 / READ THE OLD TABLES CAREFULLY

Series descriptions are useful; a current coded offer is still essential

Z2 and ZSN4 text contains transcription and edition issues

The Z2 page includes obvious transcription errors in some voltage and speed prose; its named historical standard is not evidence of a current certified model. The ZSN4 headline and body disagree on enclosure degree, and its older cited standard editions need confirmation against the destination project's requirements. This profile does not copy doubtful figures into a model specification.

Manufacturer claims and selected-model proof are different

The current company site names 江苏哈泽电机制造有限公司 and presents the Z2, Z4, ZSN4 and medium-frame Z catalogues. Its self-described production scale, university relationships and quality-testing statements have not been independently verified here and are not used as credentials. Ask for a dated selected-model datasheet, drawing, nameplate, inspection record and source of any claimed approval.
