01 / WHERE IT WILL RUN
Standard industrial duty and frequent washdown are different briefs
The official catalogue groups aluminum IEC motors separately from the TSSN hygienic stainless family. The latter page describes construction for cleaning-intensive food and pharmaceutical equipment; it does not make every stainless motor suitable for every chemical or cleaning regime.
IEC aluminum: start with a precise efficiency and frame requirement
TECHTOP lists separate MS and TA aluminum three-phase lines across named efficiency classes. The class in a series title is a catalogue description, not a substitute for a model-specific rated-point record or local market compliance check.
Confirm before ordering Send voltage, frequency, output and duty, frame and mounting, required efficiency regime, ambient conditions and the nameplate of the motor being replaced.
View IEC aluminum three-phase motor →
TSSN stainless: design for the actual wash process
The TSSN product page identifies 316L stainless construction, a smooth surface without cooling fins and an IP69K series statement. It lists 4-pole IEC 63–90 B5/B14 configurations and a 230/400 V, 50 Hz connection. These published attributes must be checked for the precise offered model and wash process.
Confirm before ordering Specify detergent chemistry, pressure and temperature, cleaning frequency, ingress exposure, mounting and drainage; obtain the exact enclosure drawing and material declaration.
View IEC stainless steel motor →
02 / HOW IT SHOULD MOVE
A holding or stopping duty needs a brake brief, not only motor kilowatts
TECHTOP publishes MSB, TAB and TXAB as distinct brake-motor families. The MSB and TAB pages describe three-phase asynchronous motors coupled to electromagnetic DC brakes. A published series description does not define the safe stopping performance of a particular load and control circuit.
Is the brake for parking, positioning or repeated dynamic stops?
Provide the driven inertia, output speed, stop frequency and required holding torque. Ask for brake torque, permitted energy per stop, release and engagement timing under the proposed wiring, plus the replacement-brake service procedure.
View MSB brake motor series →
Which brake family matches the machine envelope?
The manufacturer lists MSB, TAB and TXAB separately. Compare the model-specific flange, shaft, overall length and terminal-box position, then request a drawing and test record for the chosen code instead of assuming common mounting across the three.
View TAB brake motor series →
Is speed control part of the motor offer?

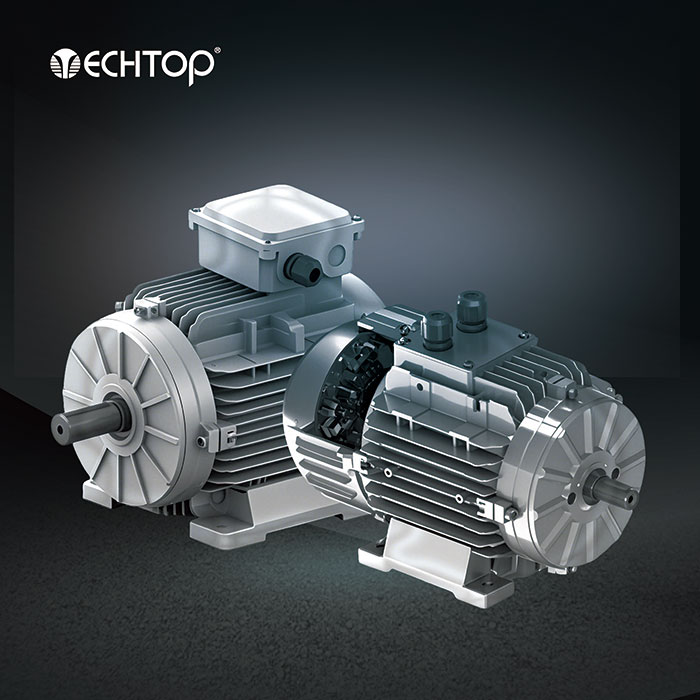

The catalogue distinguishes EC permanent-magnet synchronous motors from ECI motors with an integrated drive. Confirm the selected drive package, control method, supply and fault handling; a PMSM listing alone does not prove a plug-in replacement for an induction motor.
View Permanent magnet synchronous motor →
03 / APPROVE THE ACTUAL BUILD
What to compare before accepting a model code
Electrical and efficiency
Rated output, voltage, frequency, phase, pole count, full-load current, duty, efficiency at the applicable rating point and the target market's actual compliance requirement.
Mechanical and environmental
IEC or NEMA frame, mounting form, shaft and keyway, overall envelope, cooling and ingress protection, actual ambient and any washdown materials and chemicals.
Brake or drive acceptance
For brake units, supply holding and stopping duties and ask for brake wiring, torque and thermal limits. For permanent-magnet drives, request the matched controller information, speed range and protection behavior.
04 / COMPANY AND SOURCE CONTEXT
TECHTOP is a brand of Shanghai Top Motor; product evidence remains model-specific
The company identifies itself as Shanghai Top Motor Co., Ltd. and publishes IEC, NEMA, permanent-magnet and specialized motor catalogues. The PTC ASIA organizer independently listed the same English and Chinese legal names in its 2023 exhibitor list. That dated record supports identity, not the rating or certification of any listed motor.
A broad manufacturer catalogue
The official catalogue separates aluminum, cast-iron and other housings; its product pages contain series and, for selected codes, downloadable specifications, drawings and test reports. Ask for those documents against the exact quotation rather than a generic brochure.
Independent identity cross-check
The 2023 PTC ASIA organizer list names Shanghai Top Motor Co., Ltd. together with 上海特波电机有限公司. A trade-show listing is historical identity evidence and should not be read as a present manufacturing audit.
Scope matters
Company-level statements about global operations, output and quality systems are not applied to individual motors here. For a purchase decision, confirm the manufacturing entity, current model documents and any certificate's product scope and validity.
