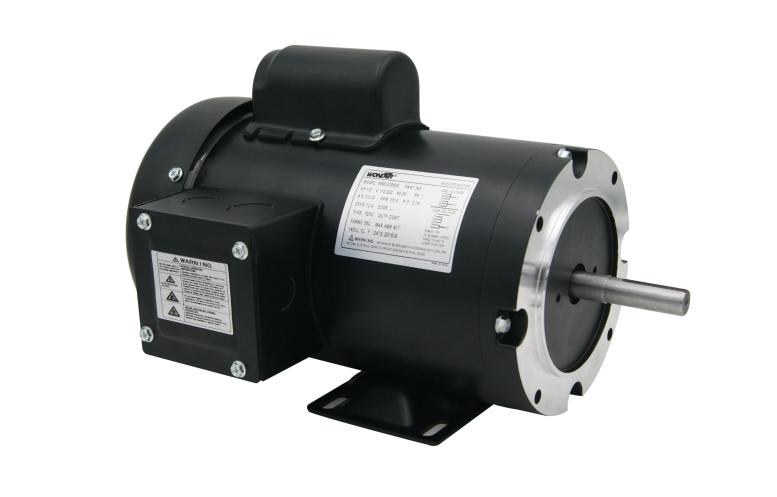

WSEDC56 single-phase capacitor-start motor

Manufacturer catalogue image · Series illustration

AC induction motors

WSEDC56 single-phase capacitor-start motor

Power
0.1864–1.4914 kW
Voltage
115/230 V
Frame
NEMA 56
Poles
2 or 4

Catalogue series · Exact configuration and availability confirmed by the manufacturer.

CATALOGUE OVERVIEW

About this motor series

WONDER's WSEDC56 page describes a NEMA 56 single-phase capacitor-start motor family with an output range of 1/4–2 HP. The published electrical options are 115/230 V at 60 Hz, with two- or four-pole variants and listed speeds of 3400 or 1700 rpm. A service factor of 1.15 appears in the manufacturer's specification table. Kilowatt values here are converted from the stated horsepower range and are not additional model ratings. For a replacement, identify the exact horsepower, speed and supply connection, then compare the mounting and shaft drawing with the driven equipment. Ask for starting current and torque data appropriate to the load, together with the selected model's enclosure, thermal protection and permitted duty before making a purchasing decision.

Model / series reference: WSEDC56

Published specifications

Specifications describe a series range; confirm which ratings apply together to the quoted model.

Power
0.1864–1.4914 kW
Voltage
115/230 V
Frame
NEMA 56
Poles
2 or 4
Frequency
60 Hz
Output Range
1/4–2 HP
Speed Options
3400 or 1700 rpm
Service Factor
1.15
Starting Arrangement
Capacitor start
Speed
Model dependent

Confirm mounting and shaft dimensions against the drawing for the quoted configuration.

Catalogue reference

Manufacturer
WONDER
Product reference
WSEDC56 single-phase capacitor-start motor
Source reviewed
2026-09-23

Ask for the current datasheet and dimensioned drawing with your inquiry.
