MOTOR MANUFACTURER · Jiangsu, CHINA

Deli Electric Motor

Deli's aluminium-housing catalogue puts a standard IE replacement, a separately cooled inverter motor and an electromagnetic-brake motor side by side. The decisive question is what the machine must do at low speed and at stop, not which family label looks newer.

LocationJiangsu, China
Published catalogue4 product series
Motor families2 represented

JIANGYAN · ALUMINIUM-FRAME INDUSTRIAL MOTORS

Deli Electric Motor: distinguish IE replacement, VFD cooling and brake protection

Explore the published range ↓

01 / MOTOR AND MACHINE

Start with running speed, then ask what must happen when power changes

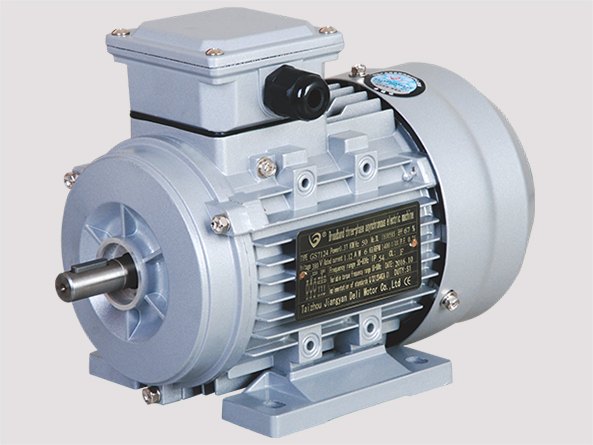

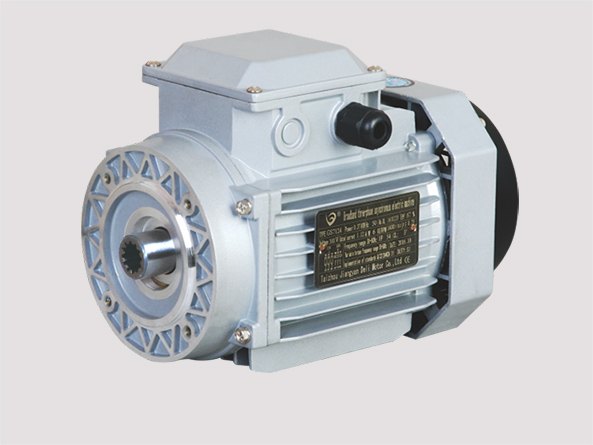

IE2 or IE3: a fixed-speed replacement still needs a full match

Deli publishes separate IE2 and IE3 aluminium three-phase product pages. Its IE3 page includes image-based technical and mounting tables and an older local efficiency-label reference; the public text alone does not prove the current efficiency class of every frame or export-market variant. A higher class on paper cannot correct an incompatible shaft, mounting foot or starting method.

Confirm before ordering Send incumbent frame, pole count, rated output, line voltage/frequency, load curve, start frequency, shaft/flange/foot drawing, cooling and market. Require an exact ordering code, current nameplate and efficiency test/standard evidence for the destination market, plus the dimensioned replacement drawing.

View IE3 aluminium-housing three-phase induction motor →

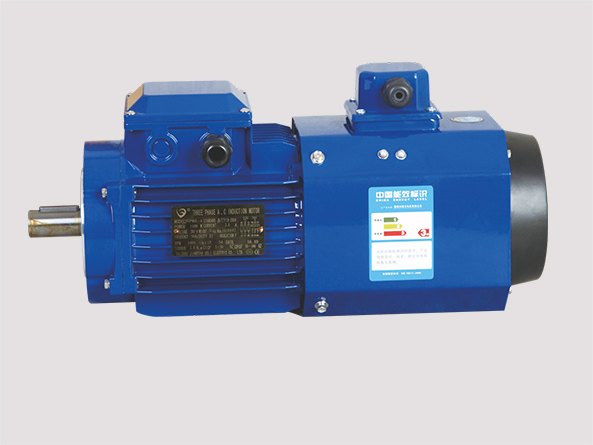

YVF2 inverter duty: low-speed cooling is part of the package

The company's YVF2 description explicitly calls out an independent ventilation system for prolonged low-speed operation, frames 56–132 in the range and an optional YVF2EJ brake combination. Those are family statements, not permission to run every motor at any speed with full torque. Specify the VFD, cooling-fan supply and speed/torque duty together; the square aluminium enclosure alone is not the suitability test.

Confirm before ordering State inverter output and carrier setup, minimum continuous speed, overload and acceleration cycle, fan power, motor cable/insulation needs, frame and mounting, ambient and noise limit. Ask for the exact speed-dependent torque/temperature envelope and drive parameter sheet for the selected code.

View Square aluminium-housing variable-frequency motor →

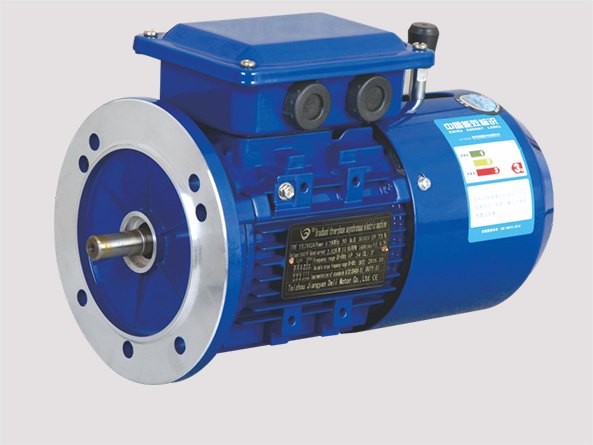

YEJ2 brake duty: inspect the brake as a separate exposed component

Deli's YEJ2 page lists motor enclosure options IP44/IP54/IP55 but gives the brake part as IP23. A buyer specifying a washdown or dusty line cannot assume the assembled brake motor inherits the motor body's higher ingress rating. The page also lists voltage, frequency and insulation options at family level rather than a complete brake torque and stopping-time table.

Confirm before ordering Provide load inertia, emergency and routine stopping duty, holding requirement, supply and brake control method, release time, ambient contamination and allowable coast. Require the exact motor/brake enclosure, brake torque and test method, wiring, manual release details and stop-cycle thermal evidence.

View YEJ2 aluminium-housing electromagnetic brake motor →

02 / CURRENT REVISION MATTERS

The corporate site identifies the range; it does not replace a current test sheet

Separate document date from present production scope

The company's site identifies its Jiangyan location and publishes IE2, IE3, YVF2 and YEJ2 families, but its visible footer and news archive are dated and several specifications are embedded as images. A buyer should ask which current standard, winding, dimensional revision and country-specific efficiency regime applies to the exact motor now quoted. The earlier website claim of general CE/CCC/ISO status is not a model-level certificate or proof of current validity.

Independent records confirm the local entity, not a model rating

Jiangyan's 2023 government work-plan list names Deli Electric Motor among local industrial enterprises, and an industry association described a 2023 visit to the company. These help distinguish the Jiangyan manufacturer from similarly named motor businesses elsewhere; neither record certifies today's IE3 rating, VFD duty or brake ingress protection.

03 / BUY THE RIGHT CONFIGURATION

Ask for one marked-up motor drawing and a duty-specific test return

What should go into the enquiry?

State whether this is a fixed-speed replacement, controlled low-speed drive or stopped/held load. Add the machine and load trace, supply and control cabinet, exact mounting/shaft interface, environmental exposure, required efficiency market and standard, quantity, sample date and requested service life. For a brake, include total reflected inertia and stop cycles; for a VFD, include the continuous minimum speed.

What must come back before placing the order?

Request an exact motor code and bill of options, present nameplate and dimensioned outline, per-model performance and temperature data, applicable efficiency certificate or report, VFD/fan wiring or brake wiring and separately stated brake enclosure rating. Compare the same duty and protection level on each quotation, not a generic aluminium-housing photograph.

Published motor range

4 series

Company information

Company name
Deli Motor Co., Ltd.
Chinese registered name
德力电机有限公司
Region
Jiangsu, China
Record updated
2026-10-07
