MOTOR MANUFACTURER · Jiangsu, CHINA

Mabuqi Motor

Mabuqi's compact catalogue mixes a gearbox alone with brushed DC, brushless and stepper gearmotor assemblies. Choose the output-shaft duty and control method first; a shared gearbox diameter does not make the assemblies interchangeable.

LocationJiangsu, China
Published catalogue4 product series
Motor families4 represented

DONGTAI · COMPACT PLANETARY DRIVES

Mabuqi Motor: buy a planetary output, not just a motor diameter

Explore the published range ↓

01 / WHAT IS INCLUDED?

Four catalogue entries answer four different purchasing questions

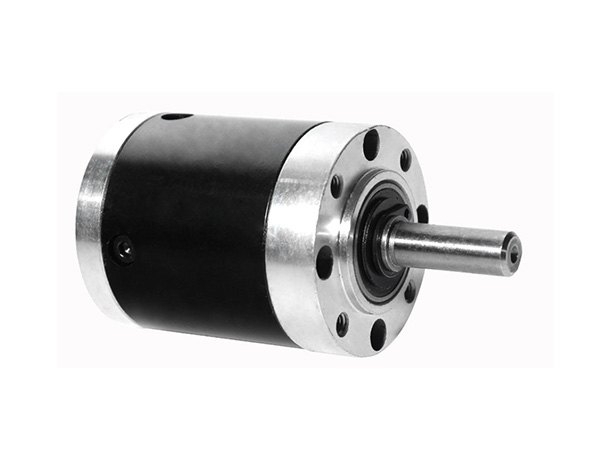

M38GXR: a reducer is not a complete drive

The older corporate catalogue names an M38GXRL miniature planetary reducer; MotorSourcing's existing M38GXR listing represents this gearbox-only route. The newer company catalogue lists diameter-labelled M-series reducers as a separate product class. A buyer with an incumbent motor must first check input shaft, flange, permissible input speed, ratio and output bearing loads; the reducer title alone says nothing about a bundled motor or controller.

Confirm before ordering Send the motor drawing, input speed and torque, required reduction ratio, output-shaft radial/axial load, backlash allowance, mounting space and duty. Request the exact gearbox code and dimensioned input/output drawing before checking motor fit.

View M38GXR miniature planetary gearbox →

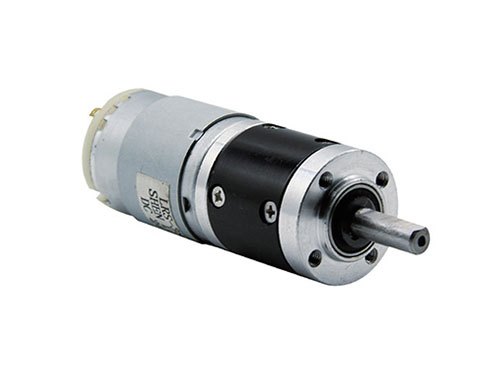

M30GXR28ZYT47: a brushed DC assembly needs an output duty

Mabuqi's original product and parameter-download index both identify M30GXR28ZYT47 as a permanent-magnet DC planetary gearmotor. The newer catalogue separately lists an M28GXR28ZYT47 variant, so the M30 and M28 prefixes must not be treated as the same drawing or mounting size. The public detail text inspected here is descriptive rather than a complete readable performance table.

Confirm before ordering Specify supply and voltage range, continuous/peak output torque and speed, start-stop count, gear ratio, stall-current limit, shaft/mounting drawing, noise limit and brush-life target. Ask for the current M30 ordering revision and its tested output curve; do not borrow data from the M28 entry.

View M30GXR28ZYT47 DC planetary gearmotor →

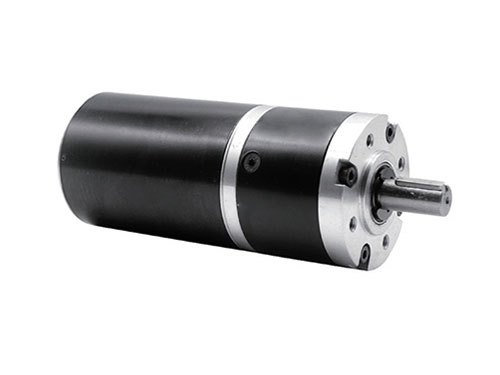

M60GXR60BLY: brushless control belongs in the quotation

The manufacturer lists M60GXR60BLY under brushless DC planetary gearmotors, with a separate archived parameter-download entry. Its current public category pages do not provide a reliable line-by-line electrical map. Unlike a two-lead brushed unit, a brushless assembly needs the intended driver and commutation/feedback scheme defined with the motor; the visible product name does not establish a supplied controller.

Confirm before ordering Provide DC bus and transient limits, continuous and peak gearbox-output duty, sensor or sensorless preference, controller ownership, connector pinout, thermal path and required gear life. Request the exact motor winding, ratio, driver match and point-by-point test report.

View M60GXR60BLY brushless planetary gearmotor →

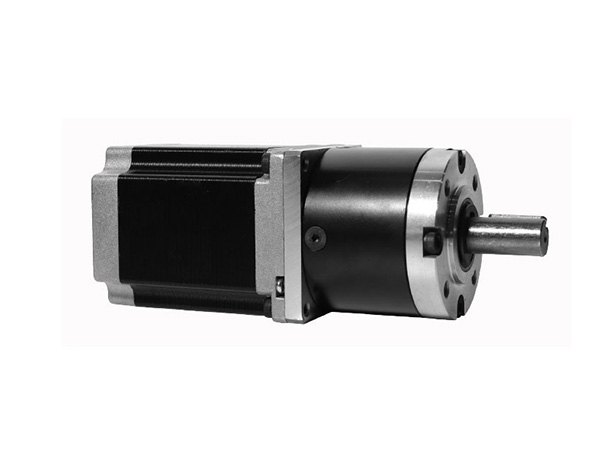

M56GXR-57BYG: position control also needs load verification

Mabuqi lists M56GXR-57BYG as a stepper planetary gearmotor, distinct from its brushed and brushless families. A gearbox can improve output torque while introducing backlash and reducing output speed; a step count by itself does not guarantee the required position at the loaded shaft. The site's model title does not supply an independently readable full torque-speed/ratio table.

Confirm before ordering State motion profile, required output angle and repeatability, holding and running torque at the shaft, acceleration, ratio, backlash limit, driver current/microstep method and mounting envelope. Request loaded positioning and thermal test results for the quoted combination.

View M56GXR-57BYG stepper gearmotor →

02 / READ THE ORIGINAL MATERIAL

Product names are traceable; rated combinations still need drawings

Two company-controlled catalogues share the legal identity

The older corporate site and the newer product catalogue both identify Jiangsu Mabuqi Motor Manufacturing in Dongtai and organize planetary reducer, DC, brushless and stepper products. Original named product entries establish that these are separate configurations. Their descriptive paragraphs are largely generic and do not verify that every diameter, voltage, ratio and controller option can be ordered together. The older site also exposes 2019 parameter-download entries, but a download title is not a current signed rating sheet.

A local government filing is a project record, not delivered capacity

Dongtai's 2026 environmental review names the same company and a proposed motor-and-reducer technical-upgrade project. Its projected annual output is a planning figure for that project, not proof that today's line produces or ships that quantity. Obtain the current site/line, process and inspection scope with a quotation if production continuity matters.

03 / COMPARE THE SAME OUTPUT

Make each candidate prove the same shaft-level requirement

What should the buyer provide?

Give the machine drawing, mechanical envelope, output torque-speed cycle, gear-output radial/axial load, permissible backlash, supply and control method, starts per hour, ambient, noise target, life goal, sample quantity and planned annual volume. For a replacement, include the incumbent motor-plus-gearbox code and actual loaded output data.

What must come back from Mabuqi?

Ask for a single complete assembly code and revision; motor type, ratio, continuous/peak output map and measurement conditions; current/driver requirements; full shaft and flange dimensions; backlash and bearing-load limits; thermal and endurance results; and a production-site statement. Compare complete assemblies at the output shaft, not a bare motor price against a geared drive.

Published motor range

4 series

Company information

Company name
Jiangsu Mabuqi Electric Manufacturing Co., Ltd.
Chinese registered name
江苏马步崎电机制造有限公司
Region
Jiangsu, China
Record updated
2026-10-07
