01 / COOLING PATH BEFORE WATTS
Bypass and through-flow blowers belong to different installation decisions

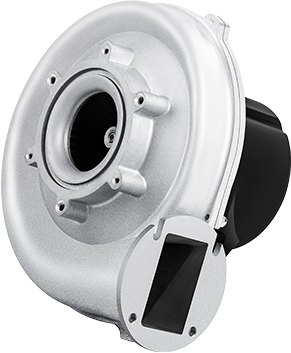

NXK83A: lower-input bypass path for combustion air
The maker describes the 8.3-inch NXK83A as a bypass brushless blower with a die-cast aluminium housing and metal impeller. Its coded 230 V, 50/60 Hz row lists 300 W maximum electrical input, 300 m³/h maximum airflow and 4.7 kPa maximum vacuum; the separately coded 120 V row lists 288 m³/h and 4.8 kPa. These are row-specific catalogue maxima, not one simultaneous duty point. The page mentions premix heating applications but does not establish burner approval or a safe air setting for a particular appliance.
Confirm before ordering Give the burner or air-system required flow at operating back pressure, control signal, inlet temperature and appliance safety requirements. Ask for the NXK83A curve, dimensional drawing and a signed statement of the offered variant and controller.
View NXK83A brushless bypass blower motor →

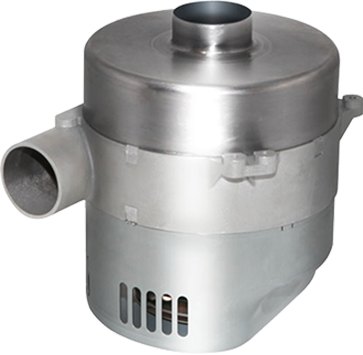

NXK57B: compact bypass path where suction matters
The 5.7-inch NXK57B page gives coded 230 V and 120 V rows at 600 W maximum input. The 230 V NXK57Z0600B24 row lists 170 m³/h maximum airflow and 11.0 kPa maximum vacuum; the 120 V NXK57Z1200B21 row has different figures. A higher-input row is printed without a model code, so a buyer should not order it by assuming it is the same unit. This series is a different pressure/flow proposition from the larger NXK83A.
Confirm before ordering State the working pressure and flow, intake filtration, expected dust or moisture exposure, run time and acoustic target. Request a P-Q curve at the intended speed plus the exact model code and electrical input diagram.
View NXK57B brushless bypass blower motor →

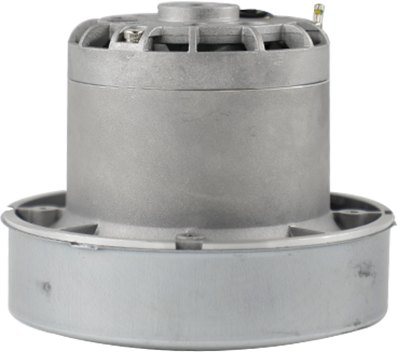

NXK51: through-flow path with enclosure integration work
NXK51 is the published 5.1-inch through-flow assembly. Its coded 120 V row lists 800 W maximum input, 192 m³/h maximum airflow and 23.0 kPa maximum vacuum. The product page marks IP00 rather than the IP20 shown on the bypass pages; the buyer must design guarding and an appropriate enclosure for the installed assembly. Later 230 V rows omit model codes, while one printed code appears beside a 500 W row despite its 1000-style identifier. Do not merge those rows into a claimed part number.
Confirm before ordering Confirm whether process air can provide the required cooling through the motor, and define filtration, enclosure, accessible parts, operating temperature and duty. Obtain the exact coded configuration, mounting drawing and full pressure-flow curve before prototype approval.
View NXK51 brushless through-flow blower motor →

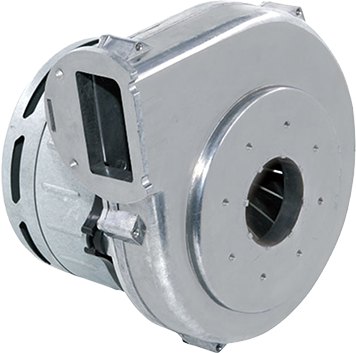

NXK73: larger bypass envelope for a separate system design
The 7.3-inch NXK73 bypass page lists a coded 230 V, 550 W maximum-input row with 250 m³/h maximum airflow and 8.0 kPa maximum vacuum. It also lists a coded 120 V, 850 W row and a 230 V, 1100 W row without a model code. The higher maximums cannot be assigned to NXK73-0500-FZ01. Published IP20 and F-class descriptors are catalogue statements; they do not establish the finished equipment's environmental protection or certification.
Confirm before ordering Specify the intended voltage, air duty point, allowed noise, mounting envelope, control input and ambient conditions. Require a named row, control electronics, curve and drawing for the offered configuration.
View NXK73 brushless bypass blower motor →
