Zhibao parking gearmotors: compare TZL22, TZL28 and TZL50 by output shaft

Explore the published range ↓

01 / PARKING DRIVE FIT

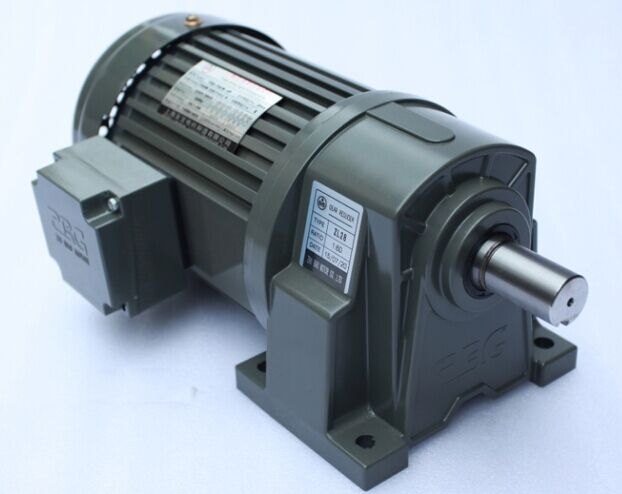

The TZL number changes the gearbox interface and motor size

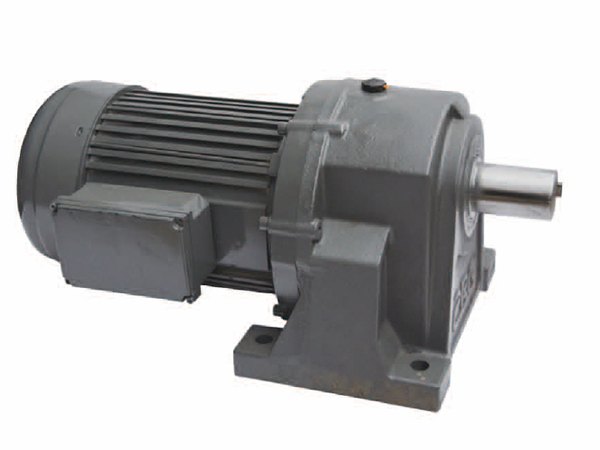

TZL22: compact 0.2 kW package

The manufacturer's TZL22-0.2kW drawing shows a three-phase 380V, four-pole motor with a 22 mm h6 output shaft. Its own ratio table runs from 1:30 to 1:90, with a separate output-speed row for each ratio. The 312.5 mm overall length and 154 mm base width on that drawing describe this unit, not the larger TZL28 or TZL50.

Confirm before ordering For a retrofit, send the existing 22 mm shaft and keyway, mounting-centre dimensions, reducer orientation and chosen ratio. Confirm available enclosure space and the actual output-speed row before treating the 0.2 kW label as a fit.

View TZL22-0.2kW parking-system gearmotor →

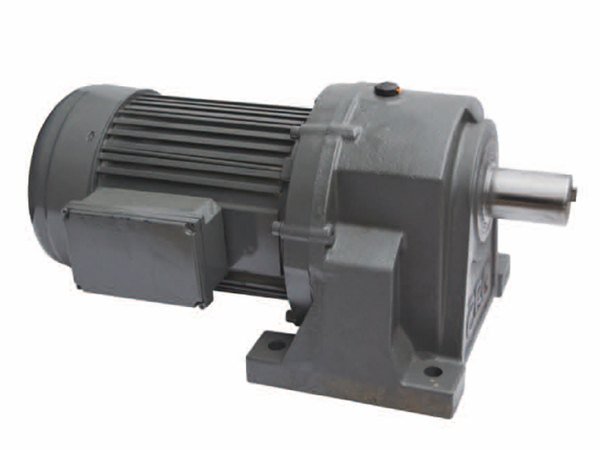

TZL28: 0.75 kW with a larger output interface

The TZL28-0.75kW manufacturer drawing specifies a 28 mm h6 output shaft and a 170 mm base width. Its listed ratios include 1:30, 1:40, 1:50, 1:60, 1:70 and 1:90. Those ratio rows have different output speeds and torques; selecting 1:75 from a different drawing would be an invented configuration. Compare the actual door or parking-platform load at the required ratio.

Confirm before ordering Provide the existing shaft/key, bolt-hole pattern, clearance, gearing direction, load per start and duty cycle. Request the exact TZL28 ratio drawing and output torque at that ratio, plus the motor current and brake wiring diagram.

View TZL28-0.75kW parking-system gearmotor →

TZL50: 2.2 kW and a 50 mm output shaft

The TZL50-2.2kW drawing shows a 50 mm h6 output shaft, 286 mm base width and 496 mm overall length. Its ratio table is not the same as TZL28's; it includes 1:60, 1:75, 1:85, 1:100 and 1:120. At 1:75, the drawing lists 19.1 r/min output. The enlarged shaft and body have direct implications for coupling, platform structure and service clearance.

Confirm before ordering Send the platform mass and drive geometry, desired output speed, existing coupling/shaft and bearing support, mounting sketch and braking sequence. Ask for the exact ratio's output torque and load rating, not the largest figure across the whole TZL50 table.

View TZL50-2.2kW parking-system gearmotor →

02 / MOTION SYSTEM

Output motion and holding behavior are separate calculations

Use the ratio row, not the input motor rpm

All three parking drawings list a four-pole motor at 1400 r/min under 50Hz, but the gearbox output speed depends on the selected ratio. The published figures are different for TZL22, TZL28 and TZL50. For travel-time sizing, calculate from the required platform motion and check the matching drawing row under load; do not combine a ratio from one package with torque or shaft dimensions from another.

Brake electrical supply is not the drive supply

The manufacturer drawings show a 380V, 50Hz three-phase motor and a separate brake electrical section. They mention DC 90V brake voltage and an AC 200–240V input in that brake section. An installer must obtain the exact rectifier and wiring schematic, release time, holding torque and fail-safe response rather than connecting the brake directly to the motor's 380V line by assumption.

A gearmotor is not the complete parking safety system

The unit must fit into a parking machine's mechanical stops, controls, overload protection, interlocks and emergency lowering or release strategy. Agree which party supplies and validates each safety function. A catalogue brake figure does not certify the complete parking equipment or prove that a platform will remain safe under every failure mode.

03 / WHAT TO SEND

Give the supplier dimensions and operating cycles before asking for a motor price

What should accompany an RFQ?

Include photos and plate of the installed gearmotor, assembly drawing, output-shaft diameter/keyway and handedness, foot-bolt pattern, reducer ratio, coupling, platform mass and travel, starts per hour, operating environment, supply and available brake-control voltage. State whether the request is a dimensional replacement or a new drive design.

How do you compare the offer?

Ask for one full TZL model and ratio, output speed and torque at that ratio, exact shaft and base drawing, motor rated current, brake coil/rectifier diagram, permissible starts, thermal limits and included accessories. The catalogue images show distinct variants, not one menu of freely combinable maxima.

What does acceptance require?

Witness fit to the approved mounting, loaded travel time and current, brake release and holding, repeated cycling temperature, abnormal-stop response and control interlocks on the actual parking mechanism. Record the final installed model and wiring, not just the motor-kW value.

04 / FACTS AND LIMITS

Three readable factory drawings support this comparison

Manufacturer identity and technical source

The manufacturer's site names 上海至宝电机制造有限公司 and publishes separate illustrated TZL22, TZL28 and TZL50 parking-drive sheets with dimensions, ratio rows and brake fields. An exchange-listed company's public supplier disclosure independently names the same enterprise as a motor supplier; it does not inspect these exact parking-drive variants.

Certification scope remains model-specific

A public CQC certificate listing names this manufacturer and a ZBG-branded motor certificate, with detailed approved models in a separate annex. Without matching the annex to a proposed TZL order code, this profile does not label every parking gearmotor certified. Some manufacturer sheets are older illustrations; request a current drawing and certificate for the ordered build.
